Also available
- Coupling
- Reducer
- Elbow 90˚
- Tee
- Tee reduced
- Solder connector
Compression fittings
PEXa Pipe Connectors
PEXa compression fittings are renowned for their robustness, reliability and ease of use in all applications where PEXa tubing is commonly used. Made from high-quality materials, they offer exceptional durability and resistance to harsh conditions. Their ingenious design allows quick installation without the need for special tools, thanks to a practical opening screw. These fittings are compatible with all types of PEXa tubing, for transporting water, glycol and in snow melting systems, ensuring a reliable seal and minimizing the risk of leaks.
Advantages of compression fittings
- Versatility: Suitable for a wide range of heating applications, for transporting water, glycol and snow melting systems.
- Compatibility: Can be used with all PEX tubes, provided outer diameter and wall thickness are compatible.
- Easy installation: bolt-type connectors are easy to assemble thanks to a practical opening screw, eliminating the need for special tools or hydraulic equipment.
- Reliable sealing: Ensures a secure connection, reducing the risk of leaks.
- Durability: Resistant to high pressures and temperatures, suitable for demanding environments.

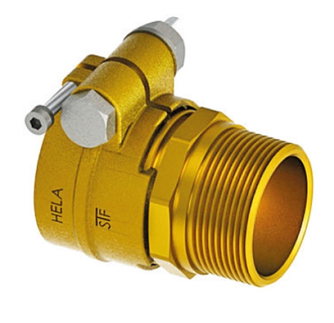

| Compression fitting - outside screw - SDR 11 PEX | ||
|---|---|---|
| Product number | PEX Øext x wall [mm] | Thread (inches) |
| 25/0,75-H | 25x2,3 | 3/4" |
| 32/1,00-H | 32x2,9 | 1" |
| 40/1,25-H | 40x3,7 | 1-1/4" |
| 50/1,50-H | 50x4,6 | 1-1/2" |
| 63/2,00-H | 63x5,8 | 2" |
| 75/2,50-H | 75x6,8 | 2-1/2" |
| 90/3,00-H | 90x8,2 | 3" |
| 110/4,00-H | 110x10,0 | 4" |

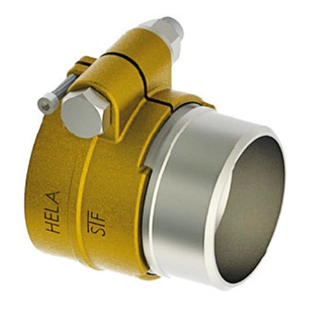

| Compression fitting to weld - SDR 11 PEX | |
|---|---|
| Product number | PEX Øext x wall [mm] |
| 63/2,00-HS | 63x5,8 |
| 75/2,50-HS | 75x6,8 |
| 90/3,00-HS | 90x8,2 |
| 110/4,00-HS | 110x10,0 |

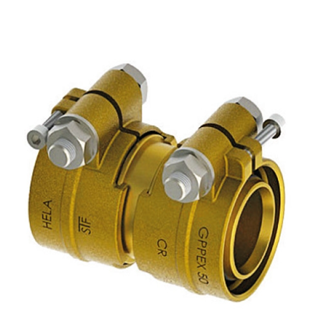

| Compression sleeve - SDR 11 PEX | |
|---|---|
| Product number | PEX Øext x wall [mm] |
| M25/0,75-H | 25x2,3 |
| M32/1,00-H | 32x2,9 |
| M40/1,25-H | 40x3,7 |
| M50/1,50-H | 50x4,6 |
| M63/2,00-H | 63x5,8 |

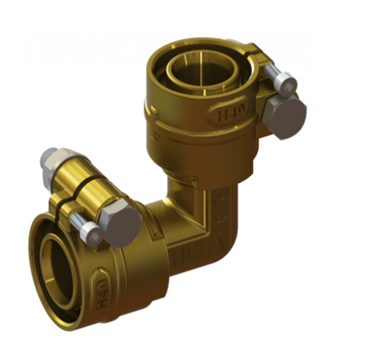

| Compression elbow - SDR 11 PEX | |
|---|---|
| Product number | PEX Øext x wall [mm] |
| C90/25-H | 25x2,3 |
| C90/32-H | 32x2,9 |
| C90/40-H | 40x3,7 |
| C90/50-H | 50x4,6 |
| C90/63-H | 63x5,8 |
| Compression T-connector - SDR 11 PEX | ||
|---|---|---|
| Product number | PEX Øext x wall [mm] | Thread (inches) |
| T40/1,00-H | 40x3,7 | 1" |
| T50/1,25-H | 50x4,6 | 1 1/4" |
| T63/1,25-H | 63x5,8 | 1 1/4" |
Slip fittings
PEXa Pipe Connectors
PEXa axial slip fittings are distinguished by their simplicity and reliability, offering an effective solution for a variety of PEXa piping applications. Installation is quick and requires no O-rings, reducing the risk of leaks. Made from dezincification-resistant brass, they guarantee long service life even under intensive use with hot and cold water. Thanks to their non-shrinking inner diameter design, these connectors maintain optimum flow, ensuring superior performance in heating and plumbing systems.
Advantages of slip fittings
- Simplicity: Easy to install, these connectors require no O-rings, reducing the risk of leakage.
- Reliability: Made from dezincification-resistant brass, guaranteeing long life even when used with hot and cold water.
- Performance: Sealing is ensured by the plastic of the PEXa tubing itself, and the internal diameter of the fittings is free from shrinkage, ensuring optimum flow.
- Versatility: Suitable for a wide range of applications, including hydronic heating systems, domestic plumbing systems, and potable water distribution networks.
- Durability: robust design for intensive use.
Also available
- Coupling
- Reducer
- Elbow 90˚
- Tee
- Tee reduced
- Solder connector

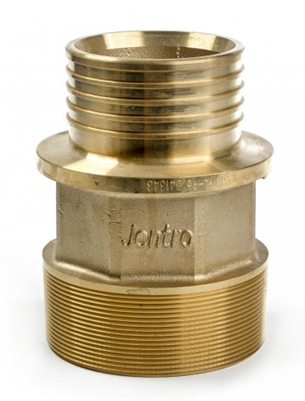

| slip fittings - SDR 11 PEXa | ||
|---|---|---|
| Produt number | PEX Øext x wall [mm] | Thread (inches) |
| 25/0,75-J | 25x2,3 | 3/4" |
| 32/1,00-J | 32x2,9 | 1" |
| 40/1,25-J | 40x3,7 | 1-1/4" |
| 50/1,50-J | 50x4,6 | 1-1/2" |
| 63/2,00-J | 63x5,8 | 2" |
| 75/2,50-J | 75x7,3 | 2-1/2" |
| 90/3,00-J | 90x9,3 | 3" |
| 110/4,00-J | 110x1,3 | 4" |

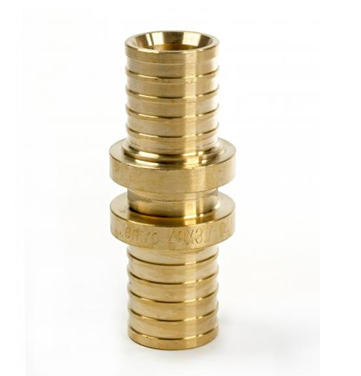

| Slip Coupling - SDR 11 PEXa | |
|---|---|
| Product number | PEX Øext x wall [mm] |
| M25/0,75-J | 25x2,3 |
| M32/1,00-J | 32x2,9 |
| M40/1,25-J | 40x3,7 |
| M50/1,50-J | 50x4,6 |
| M63/2,00-J | 63x5,8 |

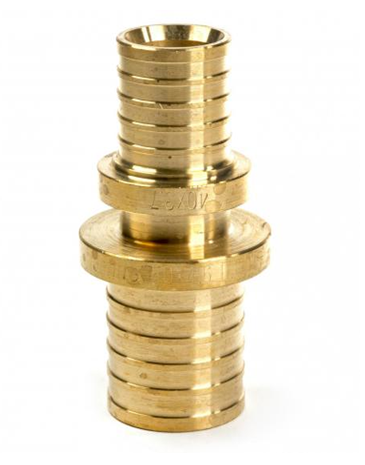

| Reduced slip coupling - SDR 11 PEXa | ||
|---|---|---|
| Product number | PEX Øext x wall [mm] | PEX Øext x wall [mm] |
| R32x25-J | 32x2,9 | 25x2,3 |
| R40x25-J | 40x3,7 | 25x2,3 |
| R40x32-J | 40x3,7 | 32x2,9 |
| R50x32-J | 50x4,6 | 32x2,9 |
| R50x40-J | 50x4,6 | 40x3,7 |
| R63x32-J | 63x5,8 | 32x2,9 |
| R63x40-J | 63x5,8 | 40x3,7 |
| R63x50-J | 63x5,8 | 50x4,6 |

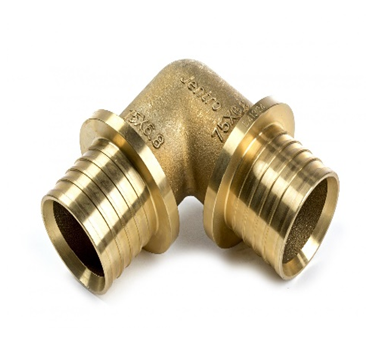

| 90° Sliding Elbow - SDR 11 PEXa | |
|---|---|
| Product number | PEX Øext x wall [mm] |
| C90/25-J | 25x2,3 |
| C90/32-J | 32x2,9 |
| C90/40-J | 40x3,7 |
| C90/50-J | 50x4,6 |
| C90/63-J | 63x5,8 |

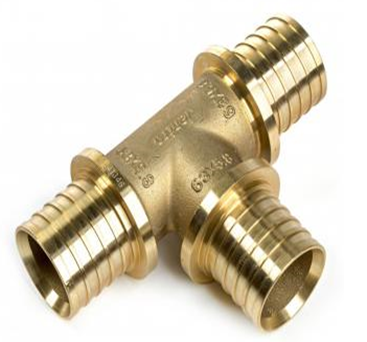

| Equal Tee Slip Fitting - SDR 11 PEXa | |
|---|---|
| Product number | PEX Øext x wall [mm] |
| T25-J | 25x2,3 |
| T32-J | 32x2,9 |
| T40-J | 40x3,7 |
| T50-J | 50x4,6 |
| T63-J | 63x5,8 |

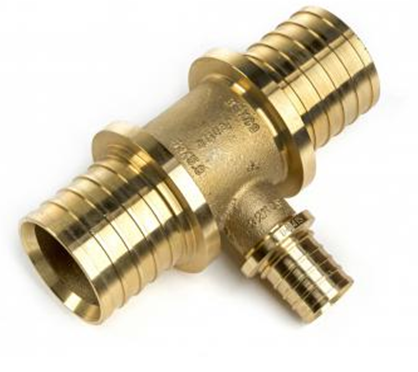

| Reduced Tee Slip Fitting - SDR 11 PEXa | ||
|---|---|---|
| Product Number | PEX Øext x wall [mm] | PEX Øext x wall [mm] |
| T32x25x32-J | 32x2,9 | 25x2,3 |
| T40x25x40-J | 40x3,7 | 25x2,3 |
| T40x32x40-J | 40x3,7 | 32x2,9 |
| T50x25x50-J | 50x4,6 | 25x2,3 |
| T50x32x50-J | 50x4,6 | 32x2,9 |
| T50x40x50-J | 50x4,6 | 40x3,7 |
| T63x25x63-J | 63x5,8 | 25x2,3 |
| T63x32x63-J | 63x5,8 | 32x2,9 |
| T63x40x63-J | 63x5,8 | 40x3,7 |
| T63x50x63-J | 63x5,8 | 50x4,6 |
